Razor Wire Specification

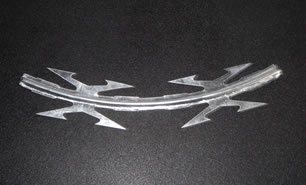

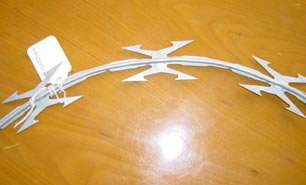

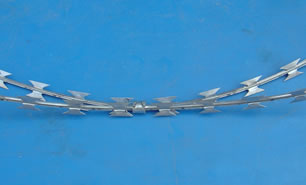

Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
 |
 |
 |
 |
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb Length |
BTO-10 |
 |
0.5±0.05 |
2.5±0.1 |
10±1 |
BTO-12 |
|
0.5±0.05 |
2.5±0.1 |
12±1 |
BTO-18 |
 |
0.5±0.05 |
2.5±0.1 |
18±1 |
BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
22±1 |
BTO-28 |
 |
0.5±0.05 |
2.5 |
28 |
BTO-30 |
 |
0.5±0.05 |
2.5 |
30 |
CBT-65 |
 |
0.6±0.05 |
2.5±0.1 |
65±2 |

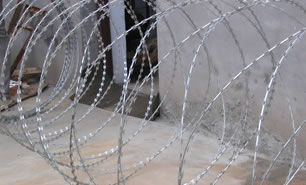

Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
