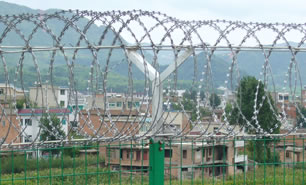

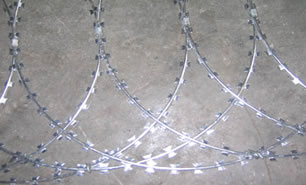

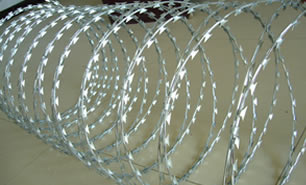

Concertina Cross Razor Wire

Concertina Cross razor wire is crossed razor wire. Two pieces of stainless steel razor wire or Zinc-coated Wire are bound together by clips to make it stronger.The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.




Blade Specification

Blade Forms

Blade Thickness

Core Wire Dia.

Blade Length

Blade Width

Blade Space

BTO-10

0.5±0.05

2.5±0.1

10±1

13±1

26±1

BTO-12

0.5±0.05

2.5±0.1

12±1

15±1

26±1

BTO-18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO-22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO-28

0.5±0.05

2.5

28

15

45±1

BTO-30

0.5±0.05

2.5

30

18

45±1

CBT-60

0.6±0.05

2.5±0.1

60±2

32±1

100±2

CBT-65

0.6±0.05

2.5±0.1

65±2

21±1

100±2


Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.

Barbed Tape Wire Specification:

Ex. Dia.

No. of Turns

Standard Covering Length

Production Model

Remarks

450mm

33

8M

CBT-65

Single coil

500mm

41

10M

CBT-65

Single coil

700mm

41

10M

CBT-65

Single coil

960mm

53

13M

CBT-65

Single coil

500mm

102

16M

BTO-12.18.22

Cross type

600mm

86

14M

BTO-12.18.22

Cross type

700mm

72

12M

BTO-12.18.22

Cross type

800mm

64

10M

BTO-12.18.22

Cross type

960mm

52

9M

BTO-12.18.22

Cross type
