Barbed wire

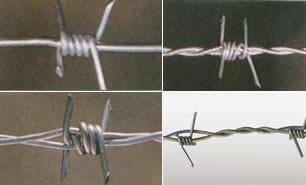

Galvanized Barbed Iron Wire in IOWA type, MOTTO type, Single type with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
The wire can be heavy galvanized wire, light hot dip galvanized wire, electro galvanized wire, PVC coated wire , PE coated wire .
Galvanized Barbed Wire offered by us is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

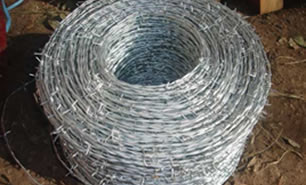

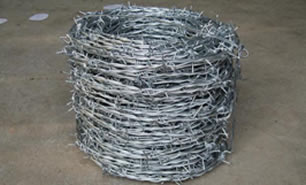

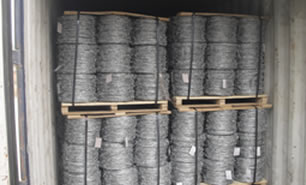

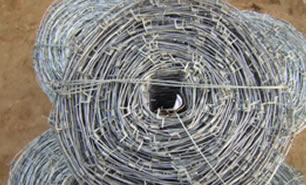

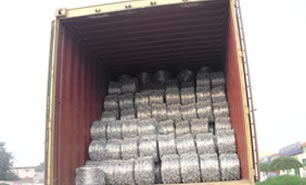

Packing: in coils.
 |
 |
 |
 |
 |
 |
| Type | Wire Gauge (SWG) |
Barb Distance |
Barb |
|
Heavy galvanized barbed wire |
10# x 12# |
7.5-15cm |
1.5-3cm |
|
12# x 12# |
||||
12# x 14# |
||||
14# x 14# |
||||
14# x 16# |
||||
16# x 16# |
||||
16# x 18# |
||||
PVC coated barbed wire |
before coating |
after coating |
7.5-15cm |
1.5-3cm |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
PVC PE coating thickness: 0.6mm-1.0mm; different colors or length are available at customers request. |
||||
Galvanized barbed wire---IOWA type |
||||
Gauge of |
Approximate Length per Kilo in Meter |
|||
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
|
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
